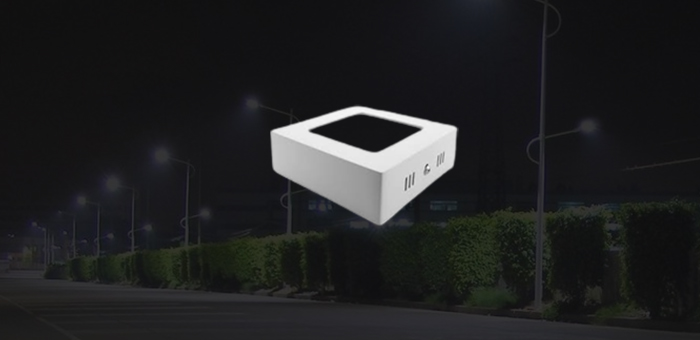

SEPS LED surface Lights are used for cilling lights for offices, campuses lighting purposes, SEPS LED surface Lights are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. Their acrylic milky cover give a wider dispersion of light, covering maximum areas.
| Details | SEPS-SFDL-SQ--018 |
| Make | Shriyash Electricals & Power Solutions (SEPS LED) |
| Input Power | 18W |
| Input Voltage | 110V DC/AC |
| Power Factor | More than 0.95 Test method as per IS 16104 standard |
| Colour Temperature | 4000K to 6500K |
| CRI | mover than 70 |
| THO | Below 10% |
| Beam Angle | 120 - 180 c1Pn |
| Led Luminous Output | 90 - 130LM/W |
| LED Make | Osram/ Seoul/Everstar |
| LED | High bright white power LED shall be use in the luminaries and wattage of LED above 0.20watt to 0.5watt |
| LED Life | More than 50000hrs |
| LED junction temperature | As per LM 80 Test Report |
| Luminaries Efficiency | Above 85% |
| Luminaries Lumens O/P | Upto 1980 |
| Housing | MS/Aluminium with powder coated body with aluminium heat sink with frosted cover. |
| Housing size | 160mmx160mm |
| Finish Reflector/PCB | Acrylic milkycover/Anodized/Powder coated/good design MCPCB |
| Operating Temperature | (-30 deg to 60 deg centigrade) |
| LED Driver | Constant Current and variable voltage LED Driver current above 350mA to below 1OOOmA Test Method as oer IS 16104 standard |
| Driver Protection | Short Circuit. Over Load Over Voltaae and Over Heat Protection |
| Safety Standard | As per IS Standard |
| Surae crotection | Up to 4kva |
