SEPS LED Street Lights (36watt)

  Home SEPS LED Street Lights (36watt)
services-1

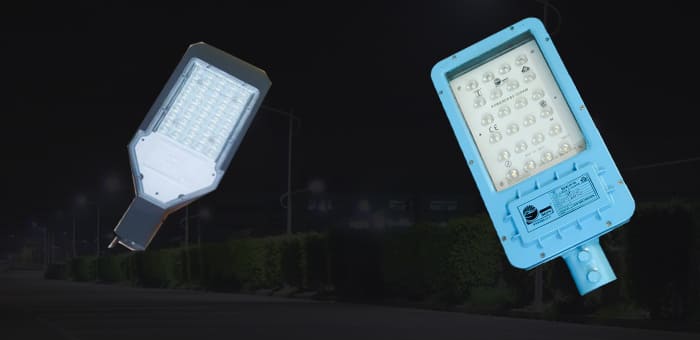

SEPS LED Street Lights (36watt)


LED STREET Lights are used for street lighting, campus lighting and garden lighting purposes; LED STREET Lights are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. Their optic lenses give a wider dispersion of light, covering maximum areas and increasing the pole spacing.

  • Street Lighting
  • Industrial Sheds
  • Factories
  • Workshops
  • Area Lighting
  • Outdoor Lighting
  • Street Lighting
  • Garden Lighting
  • Campus Lighting
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Long Life- Above 50,000 hrs.
  • Less Heat- Less Maintenance
  • High Lumen Output
  • Wide Spread Light To Cover Maximum Area
  • 1) IS Standard 15885 (part 2/sec 13):2012 Safety of Lamp Control Gear
  • 2) IS Standard 16102 (part 1):2012 Self Ballasted LED Lamps for General Lighting Services Part 1 Safety Requirements
  • 3) IS Standard 16102 (part 2):2012 Self Ballasted LED Lamps for General Lighting Services Part 2 Performance Requirements
  • 4) IS Standard 16103(part 1) :2012 LED Modules for General Lighting Part 1 Safety Requirements
  • 5) IS Standard 16104 :2012 D.C or A.C. Supplied Electronic Control Gear for LED Modules Performance Requirements
Certified by NABL Approved Lab

    For LM 79 Test Report

    • IS Standard 16107(part 2):2012

  • 1) Total Luminous flux measurement
  • 2) Luminous efficacy
  • 3) Colour Characteristics

For Photometric Test Report Photometric Data

IS 10322:2012

ISO Certified

MSME Registered Manufacturer

BIS Approved

CE Certified Product

RoHs Certified product

IP 66 certified

IP 66 certified

LM80 Report


Details SEPS-CESLSL-036
Make SHRIYASH ELECTRICALS & POWER SOLUTINS (SEPS LED)
Input Power 36W
Input Voltagel :li!Q- QQ:il 8Q - Q l:JZ,S!QQl£!i! QQ :i( , Jllitpy! l£Qllag§ s;;yt gf( QCQ!!;!CtiQnJ
Driver Safety test method as oer IS 16104 standard
Power Factor More than 0.95 Test method as per IS 16104 standard
Colour Temperature 5000K to 6500K
CRI More than 80
THO Below 10%
Beam Angle 120 - 170 deg
Led Luminous Output 100 - 120LM/W
LED Make Osram
LED High bright white power LED shall be use in the luminaries and wattage of in multi LED above 1W and below 3W
LED Life More than 50000hrs
LEDjunction temperature As per LM 80 Test Report
Luminaries Efficiency Above 85%
Luminaries Lumens O/P 36001m to 4320m
Housing IP 65 High pressure aluminium die casting powder coated body, silicon gaskets, toughened glass cover,aluminium heat sink,
Finish (Reflector) Aluminium Anodized reflector
Ingress Protection IP 66,
Operating Temperature (-30 degree to 60 degree centigrade)
LED Driver Constant Current and variable voltage LED Driver current above 350mA to below 1OOOmA Test Method as per IS 16104 standard
Driver Protection Short Circuit, Over Load, Over Voltage and Over Heat Protection
Safety Standard As per IS Standard, LM 80
Surge protection up to 4kva
