SEPS LED Street Lights (100watt)

  Home SEPS LED Street Lights (100watt)
services-1

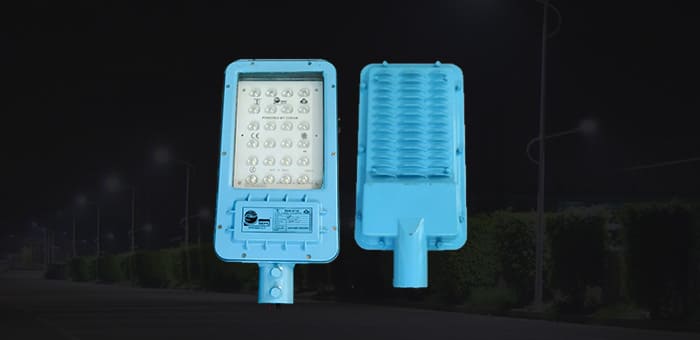

SEPS LED Street Lights (100watt)


LED STREET Lights are used for street lighting, campus lighting and garden lighting purposes; LED STREET Lights are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. Their optic lenses give a wider dispersion of light, covering maximum areas and increasing the pole spacing.

  • Street Lighting
  • Industrial Sheds
  • Factories
  • Workshops
  • Area Lighting
  • Outdoor Lighting
  • Street Lighting
  • Garden Lighting
  • Campus Lighting
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Long Life- Above 50,000 hrs.
  • Less Heat- Less Maintenance
  • High Lumen Output
  • Wide Spread Light To Cover Maximum Area

Certified by BIS Conformation standards of luminaire the luminaire conform to IEC 60598 / 10322 IS Standard 15885 (part 2/sec 13):2012 Safety of Lamp Control Gear

  • 1) IS Standard 16102 (part 1):2012 Self Ballasted LED Lamps for General Lighting Services Part 1 Safety Requirements
  • IS Standard 16102 (part 2):2012 Self Ballasted LED Lamps for General Lighting Services Part 2 Performance Requirements
  • 3) IS Standard 16103(part 1) :2012 LED Modules for General Lighting Part 1 Safety Requirements
  • 4) IS Standard 16104 :2012 D.C or A.C. Supplied Electronic Control Gear for LED Modules Performance Requirements
  • The LED’ used comply to LM-80 standards (IESNA: Approved Method for Measuring Lumen Maintenance of LED Light Sources and LED lumen depreciation time to L70 based on LM-80 data)
Certified by NABL Approved Lab

    For LM 79 Test Report

    • IS Standard 16107(part 2):2012

  • 1) Total Luminous flux measurement
  • 2) Luminous efficacy
  • 3) Colour Characteristics

For Photometric Test Report Photometric Data IS

10322:2012

ISO Certified

CE Certified Product

RoHs Certified product

IP 66 certified, LM80

BIS Approved Product


Detail Specification of SEPS LED Street Light 100watt :

Details SEPS-SLPL-100
Make SEPS LED (Shriyash Electricals & Power Solutions)
Input Power 100W
Input Voltage 90-440V AC - 50 HZ, above 440 V, output voltage cut off protection. Driver Safety test method as per IS 16104 standard
Power Factor More than 0.95 Test method as per IS 16104 standard
Colour Temperature 5700K
CRI More than 75
THD Below 10%
Beam Angle 120 - 170 deg
Led Luminous Output 130 - 160LM/W
LED Make Osram
LED High bright white power LED shall be use in the luminaries and wattage of in multi LED above 1W and below 6W
LED Life More than 50000hrs
LED junction temperature As per LM 80 Test Report
Luminaries Efficiency Above 95%
Luminaries Lumens O/P 130001m to 150001m
Housing IP 66 High pressure aluminium die casting powder coated body, silicon gaskets, toughened glass cover,aluminium heat sink,
Optic Lens Optic lens transparent lens for better light illumination for road
Ingress Protection IP 66,
Operating Temperature (-30 degree to 60 degree centigrade)
Driver efficiency Above95%
LED Driver Constant Current and variable voltage Test Method as per IS 16104 standard
Driver Protection Short Circuit, Over Load, Over Voltage and Over Heat Protection
Safety Standard As per IS Standard, LM 80
Surge protection Internal surge protection 4kva and external surge protection 1Okva
Certifications BIS, ISO, CE,RoHs,LM80,IP66, LM79
