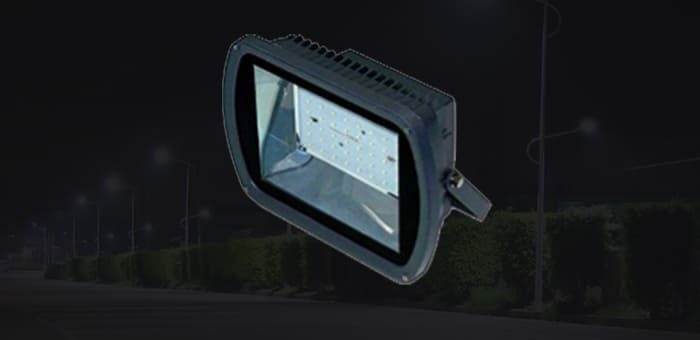

SEPS LED 90watt Flood Light

services-1

SEPS LED 90watt Flood Light


LED Flood Lights are used for High mast lighting purposes; LED FLOOD Lights are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. Their optic lenses give a wider dispersion of light, covering maximum areas and increasing the pole spacing.

  • High mast Lighting
  • Industrial Sheds
  • Factories
  • Workshops
  • Area Lighting
  • Outdoor Lighting
  • Street Lighting
  • Garden Lighting
  • Campus Lighting
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Long Life- Above 50,000 hrs.
  • Less Heat- Less Maintenance
  • High Lumen Output
  • Wide Spread Light To Cover Maximum Area
  • 1) IS Standard 15885 (part 2/sec 13):2012 Safety of Lamp Control Gear
  • 2) IS Standard 16102 (part 1):2012 Self Ballasted LED Lamps for General Lighting Services Part 1 Safety Requirements
  • 3) IS Standard 16102 (part 2):2012 Self Ballasted LED Lamps for General Lighting Services Part 2 Performance Requirements
  • 4) IS Standard 16103(part 1) :2012 LED Modules for General Lighting Part 1 Safety Requirements
  • 5) IS Standard 16104 :2012 D.C or A.C. Supplied Electronic Control Gear for LED Modules Performance Requirements
Certified by NABL Approved Lab

    For LM 79 Test Report

    • IS Standard 16107(part 2):2012

  • 1) Total Luminous flux measurement
  • 2) Luminous efficacy
  • 3) Colour Characteristics

For Photometric Test Report Photometric Data

IS 10322:2012

ISO Certified

MSME Registered Manufacturer

BIS Approved

CE Certified Product

RoHs Certified product

IP 66 certified

LM80 Report


Details SEPS-FLML-090
Input Power 90W
Make Shriyash Electricals & Power Solutions (SEPS LED)
Input Voltage 90-415V AC - 50 HZ, above 415 V, output voltage cut off protection. Driver Safety test method as per IS 16104 standard
Power Factor More than 0.95 Test method as per IS 16104 standard
Colour Temperature 4000K to 6500K
CRI More than 70
THD Below 10%
Beam Angle 150 - 170 deg
Led Luminous Output 130 ~ 160LM/W
LED Make Osram
LED High bright white power LED shall be use in the luminaries and wattage of LED above 1W and below 6W
LED Life More than 50000hrs
LED junct ion temperature As per LM 80 Test Report
Luminaries Efficiency Above 85%
Luminaries Lumens O/P Upto 10800
Housing High pressure aluminium die casting powder coated body, silicon gaskets, toughened glass cover, aluminium heat sink
Finish (Reflector) Anodized
Ingress Protection IP 66
Operating Temperature (-30 deg to 60 deg centigrade)
LED Driver Constant Voltage and Current LED Driver current above 350mA to below 1000mA Test Method as per IS 16104 standard, BIS Approved
Driver Protection Short Circuit, Over Load, Over Voltaae, and Over Heat Protection
Safety Standard As per IS Standard LM 80
Surae protect up to 4kva
