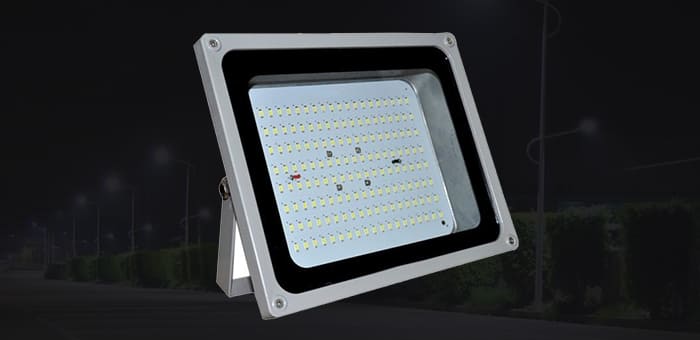

SEPS LED 250watt Flood Light

SEPS LED 250watt Flood Light


LED Flood Lights are used for High mast lighting purposes; LED FLOOD Lights are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. Their optic lenses give a wider dispersion of light, covering maximum areas and increasing the pole spacing.

  • High mast Lighting
  • Industrial Sheds
  • Factories
  • Workshops
  • Area Lighting
  • Outdoor Lighting
  • Street Lighting
  • Garden Lighting
  • Campus Lighting
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Long Life- Above 50,000 hrs.
  • Less Heat- Less Maintenance
  • High Lumen Output
  • Wide Spread Light To Cover Maximum Area

Certified by BIS Conformation standards of luminaire The luminaire conform to IEC 60598 / 10322

  • 1) IS Standard 15885 (part 2/sec 13):2012 Safety of Lamp Control Gear
  • 2) IS Standard 16102 (part 1):2012 Self Ballasted LED Lamps for General Lighting Services Part 1 Safety Requirements
  • 3) IS Standard 16102 (part 2):2012 Self Ballasted LED Lamps for General Lighting Services Part 2 Performance Requirements
  • 4) IS Standard 16103(part 1) :2012 LED Modules for General Lighting Part 1 Safety Requirements
  • 5) IS Standard 16104 :2012 D.C or A.C. Supplied Electronic Control Gear for LED Modules Performance Requirements
  • 6) The LED’ used comply to LM-80 standards (IESNA: Approved Method for Measuring Lumen Maintenance of LED Light Sources and LED lumen depreciation time to L70 based on LM-80 data)
Certified by NABL Approved Lab

    For LM 79 Test Report

    • IS Standard 16107(part 2):2012

  • 1) Total Luminous flux measurement
  • 2) Luminous efficacy
  • 3) Colour Characteristics

For Photometric Test Report Photometric Data

IS 10322:2012

ISO Certified

MSME Registered Manufacturer

BIS Approved Driver

CE Certified Product

RoHs Certified product

IP 66 certified

LM80 Report


Details SEPS-FLML-250
Input Power 250W
Make Shriyash Electricals & Power Solutions (SEPS LED)
Input Voltage 90-440V AC - 50 HZ, above 440 V, output voltage cut off protection. Driver Safety test method as per IS 16104 standard
Power Factor More than 0.95 Test method as per IS 16104 standard
Colour Temperature 5000K to 6500K
CRI More than 70
THD Below 10%
Beam Angle 80 deg
Led Luminous Output 130 ~ 160LM/W
LED Make Osram
LED High bright white power LED shall be use in the luminaries and wattage of in multi LED above 1W and below 6W
LED Life More than 50000hrs
LED junct ion temperature As per LM 80 Test Report
Luminaries Efficiency Above 85%
Luminaries Lumens O/P Upto 30000lm
Housing IP 66 High pressure aluminium die casting powder coated body, silicon gaskets, toughened glass cover, aluminium heat sink
Finish (Reflector) Black/ Silver grey colour powder coated
Ingress Protection IP 66
Operating Temperature (-10 degree to 60 degree centigrade)
LED Driver Constant Current and variable voltage LED Driver current above 350mA to below 1000mA Test Method as per IS 16104 standard
Driver Protection Short Circuit, Over Load, Over Voltaae, and Over Heat Protection
Safety Standard As per IS Standard, LM 80, BIS
Surge protection Internal 4kva and external 10kva
Mounting Arrangement C Type bracket
Certifications BIS, CE, RoHs, ISO, IP, LM80, LM79, Photometric
