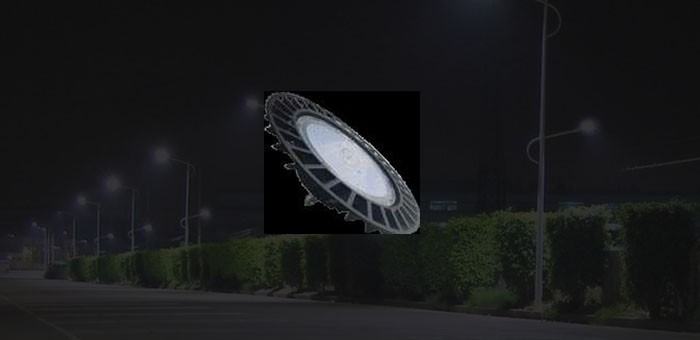

SEPS LED High Bay Lights (150watt)

SEPS LED High Bay Lights (120watt)


SEPS LED High Bay Lights are high intensity indoor/outdoor lights used at workshops, industrial sheds and factories. Indoor and outdoor lighting purposes; SEPS LED High Bay Lights are more energyefficient, more environment-friendly and more illuminating as compared to regular lights. Their optic lenses give a wider dispersion of light, covering maximum areas and increasing the pole spacing.

  • Industrial Sheds
  • Factories
  • Workshops
  • Outdoor Lighting
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Long Life- Above 50,000 hrs.
  • Less Heat- Less Maintenance
  • High Lumen Output
  • Wide Spread Light To Cover Maximum Area
  • 1) IS Standard 15885 (part 2/sec 13):2012 Safety of Lamp Control Gear
  • 2) IS Standard 16102 (part 1):2012 Self Ballasted LED Lamps for General Lighting Services Part 1 Safety Requirements
  • 3) IS Standard 16102 (part 2):2012 Self Ballasted LED Lamps for General Lighting Services Part 2 Performance Requirements
  • 4) IS Standard 16103(part 1) :2012 LED Modules for General Lighting Part 1 Safety Requirements
  • 5) IS Standard 16104 :2012 D.C or A.C. Supplied Electronic Control Gear for LED Modules Performance Requirements
Certified by NABL Approved Lab

    For LM 79 Test Report

    • IS Standard 16107(part 2):2012

  • 1) Total Luminous flux measurement
  • 2) Luminous efficacy
  • 3) Colour Characteristics

For Photometric Test Report Photometric Data

IS 10322:2012

ISO Certified

MSME Registered Manufacturer

BIS Approved


Detail Specification of SEPS LED High Bay Light

Details SEPS-HBML-UFO-150
Input Power 150W
Make Shriyash Electricals & Power Solutions (SEPS LED)
Input Voltage 90-415V AC - 50 HZ, above 415 V, output voltage cut off protection. Driver Safety test method as per IS 16104 standard
Power Factor More than 0.95 Test method as per IS 16104 standard
Colour Temperature 5000K to 6500K
CRI More than 70
THD Below 10%
Beam Angle 120 - 170 deg.
Led Luminous Output 100 ~ 120LM/W
LED Make Osram
LED High bright white power LED shall be use in the luminaries and wattage of in multi LED above 1W and below 3W
LED Life More than 50000hrs
LED junct ion temperature As per LM 80 Test Report
Luminaries Efficiency Above 85%
Luminaries Lumens O/P 15000lm to 18000lm
Housing High pressure aluminium die casting powder coated body, silicon gaskets, PC lens cover, aluminium heat sink
Optics PC lens for better light illuminity
Ingress Protection IP 65
Operating Temperature (-30 degree to 60 degree centigrade)
LED Driver Constant Current and variable voltage LED Driver current above 350mA to below 1000mA Test Method as per IS 16104 standard
Driver Protection Short Circuit, Over Load, Over Voltage, and Over Heat Protection
Safety Standard As per IS Standard LM 80
Internal Surge protection up to 4kva
External surge protection 10kv
Mounting Arrangement I Bolt hanging type
