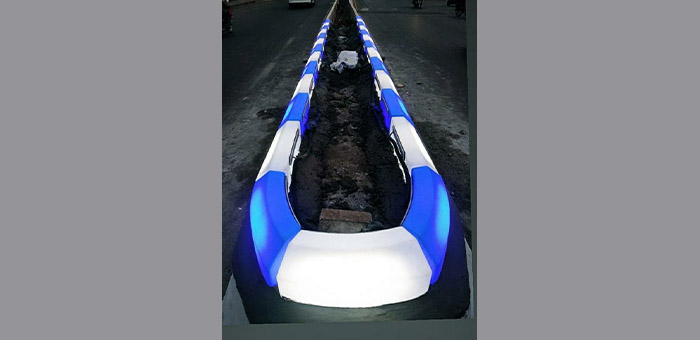

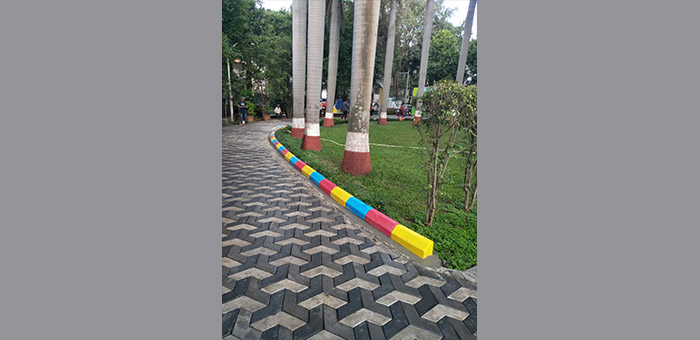

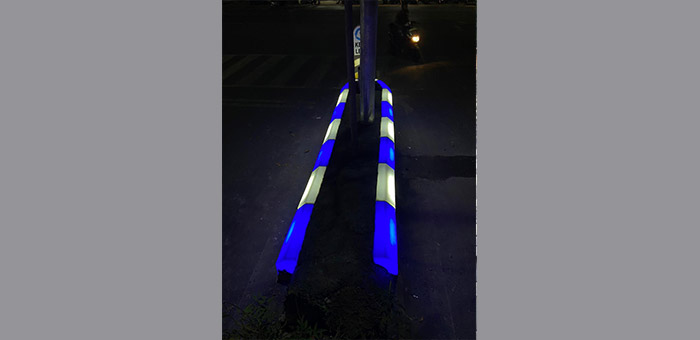

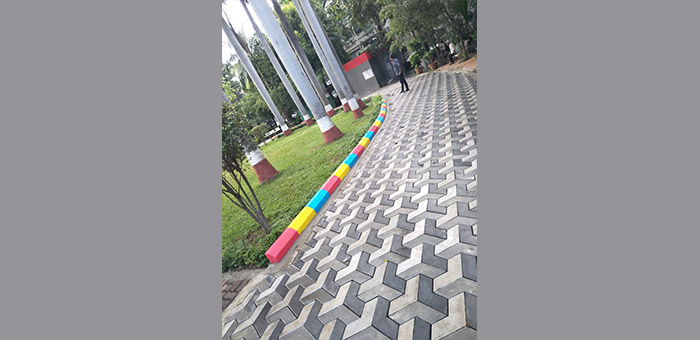

Road Site Plastic Kerb Stone With Led Lightting high intensity decorative lights used at Road divider, chowk divider, and footpath site stone lights outdoor decorative lighting purpose. Road Site Plastic Kerb Stone With Led are more energy-efficient, more environment-friendly and more illuminating as compared to regular lights. This is available in white , blue and other color as per requirement. Their plastic stone block is unbreakable and 1200kg load carrying capacity.
Detail Specification of ROAD SITE PLASTIC KERB STONE WITH LED LIGHT
| Details | Dispriction |
| Make | SHRIYAS ELECTRICALS & POWER SOLUTIONS (SEPS LED) |
| Stone Material | High quality plastic and fibber high capacity material |
| Caoacity | 1200kg load carrying capacity as per government approved lab. |
| Length | 500mm |
| Width | 150mm |
| Height | 120mm |
| Color | White, Blue and as per requirement |
| Lighting | LED Light |
| LED | 2835 led surface mounted |
| LED CRI | As per requirement |
| PCB | Metal core pcb |
| PCB Length inside the kerb | 280mm |
| PCB Width inside the kerb | 25mm and as per design |
| LED Driver | Variable voltage and constant current |
| Input Voltage | 90-V to 300v AC - 50 HZ, above 300V output voltage cut off protection. Driver Safety test method as per IS 16104 standard |
| Operating Voltage | 220v AC |
| Power Factor | More than 0.95 Test method as per IS 16104 standard |
| Maximum Output DC voltage | 72vdc |
| THD | Below 10% |
| Beam Angle | 120 deg. |
| Led Luminous Output | 100 ~ 120LM/W |
| LED Make | Osram LED |
| LED | High bright white power LED shall be use in the luminaries and wattage of in multi LED above .2W and below 1W |
| LED Life | More than 50000hrs |
| LED junction temperature | As per LM 80 Test Report |
| Input voltage Protection | Available |
| Input Current Protection | Available |
| Operating Temperature | (-30 degree to 60 degree centigrade) |
| Driver Protection | Short Circuit, Over Load, Over Voltage and Over Heat Protection |
| Safety Standard | As per IS Standard, LM 80 |
| Surge protection Internal | Up to 4kva |
